When you’re designing electronics for an electric vehicle’s Head-Up Display that stretches across the dashboard, or creating flexible circuits for a medical imaging device that needs to bend around complex anatomical structures, you’re entering the world of long flex PCB design. These extended-length flexible circuits—some reaching up to 3 meters—have become essential components in modern technology. But here’s the challenge: the longer your flexible circuit gets, the more vulnerable it becomes to signal integrity problems that can turn a promising design into an expensive failure.

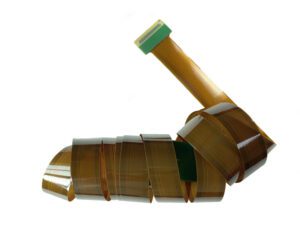

Long flex PCBs serve critical roles across industries that demand both exceptional performance and unwavering reliability. In the electric vehicle sector, these circuits connect cameras, sensors, and displays positioned throughout the vehicle’s body. Medical device manufacturers rely on them to create biomedical-compatible solutions that conform to the human body while maintaining precise signal transmission. Telecommunications equipment uses long flexible circuits to connect components in ways that rigid boards simply cannot accommodate. Even in emerging fields like low-altitude airspace technology—from drones to eVTOL vehicles—long flex PCBs enable the lightweight, space-efficient designs that make flight possible.
The appeal of long flex PCB design lies in its ability to eliminate multiple connectors, reduce assembly complexity, and create cleaner, more reliable signal paths. Instead of linking several shorter boards with connectors that introduce potential failure points, a single extended flexible circuit provides an uninterrupted pathway for your signals. This approach doesn’t just simplify manufacturing—it fundamentally improves product reliability by reducing the number of connection interfaces where problems typically occur.
The Signal Integrity Challenges That Keep Engineers Awake at Night
Signal integrity becomes exponentially more challenging as your flexible circuit length increases. What works perfectly fine in a 50mm flex PCB can create serious problems when you extend that same design to 1.6 meters or beyond. Understanding these challenges is the first step toward designing long flex PCBs that actually work in production.
Impedance mismatch stands as one of the most common culprits behind signal integrity failures. When your signal travels along a transmission line and encounters a sudden change in impedance—perhaps where your flex circuit transitions to a rigid section or where the trace geometry changes—part of that signal reflects back toward the source instead of continuing forward to its destination. In a short circuit, you might get away with small impedance variations. In a 3-meter flexible circuit, these reflections accumulate and interact, creating standing waves that distort your signal beyond recognition.
Consider what happens in an aerospace application where a long flex PCB carries high-speed data from sensors to a central processing unit. The signal needs to maintain its integrity over an extended distance while the circuit bends around structural components and operates in harsh environmental conditions. Any impedance discontinuity becomes amplified over this distance, potentially causing data corruption that could have serious safety implications.
Signal reflection works hand-in-hand with impedance mismatch to degrade your signal quality. Every time your signal encounters an impedance change, a portion reflects back. In long flexible circuits, these reflections bounce back and forth multiple times, creating what engineers call “ringing“—oscillations that make it difficult for receiving circuits to determine the true logic state of your signal. This problem becomes particularly severe in high-speed digital applications where the bit period is short compared to the propagation delay through your long flex circuit.
Noise coupling represents another critical challenge in long flex PCB design. When you route multiple signal traces in parallel over extended distances, electromagnetic fields from one trace can induce unwanted currents in adjacent traces. This crosstalk becomes more pronounced as circuit length increases because signals have more opportunity to couple together. In industrial control systems where long flex PCBs connect sensors to controllers, this noise coupling can cause false triggering or measurement errors that compromise system performance.
Timing errors emerge as a particular concern in applications requiring precise signal synchronization. In telecommunications equipment using optical transceiver modules, signals must arrive at their destinations with tight timing relationships. The longer your flexible circuit, the more susceptible it becomes to variations in propagation delay caused by temperature changes, mechanical stress, or manufacturing variations. A timing skew of just a few nanoseconds—negligible in a short circuit—can cause synchronization failures in a long flex PCB carrying high-speed data.
The defense and aerospace industries understand these challenges intimately. When a military communications system fails because of signal integrity problems in a long flex PCB, the consequences extend far beyond warranty costs. These applications demand designs that maintain signal quality under extreme conditions while providing the flexibility to conform to complex mechanical assemblies.
Design Techniques That Actually Solve Signal Integrity Problems
Addressing signal integrity in long flex PCB design requires a systematic approach that begins at the schematic capture stage and continues through manufacturing. The good news is that proven design techniques can dramatically improve your signal quality when applied correctly.
Controlled impedance design forms the foundation of successful long flex PCB projects. You need to calculate and maintain consistent impedance throughout your entire circuit, paying particular attention to transitions between flexible and rigid sections. This involves carefully selecting trace widths, dielectric thickness, and copper weights to achieve your target impedance—typically 50 ohms for single-ended signals or 90-100 ohms for differential pairs.
In an EV application where a long flex PCB connects a wing mirror camera to the vehicle’s display system, maintaining 100-ohm differential impedance ensures clean video signal transmission. The design must account for how bending affects impedance—when your flexible circuit bends, the dielectric thickness effectively changes, which shifts your impedance. Smart designers factor this into their initial calculations rather than discovering the problem during testing.
Shielding strategies become essential when your long flex PCB must operate in electrically noisy environments. Adding a copper shielding layer—either solid or cross-hatched—between your signal layer and external interference sources dramatically reduces EMI susceptibility. The shielding can be patterned to maintain flexibility while still providing effective noise protection. For medical devices requiring ISO 13485 compliance, proper shielding isn’t optional—it’s necessary to prevent electromagnetic interference from affecting device operation or causing patient safety issues.
Teardrop vias might seem like a small detail, but they play an outsized role in maintaining signal integrity in long flexible circuits. The gradual transition that teardrop shapes provide between traces and vias eliminates the impedance discontinuity that occurs with abrupt connections. This becomes critical in HDI flexible PCBs where via-in-pad designs are common. When your 3-meter flexible circuit includes hundreds of vias, optimizing each connection point compounds to create measurable improvements in overall signal quality.
Large annular rings provide mechanical reinforcement that keeps your via connections intact through repeated flexing cycles. In applications like smart helmet designs for F1 racing, where the circuit experiences constant vibration and mechanical stress, generous annular rings prevent via barrel cracking that would compromise signal integrity. The engineering team at Flex Plus has found that annular ring sizes need to increase proportionally with circuit length—what works for a 200mm flex PCB may prove inadequate for a 2-meter design.
Ground plane management requires particular attention in long flex PCB designs. A continuous ground plane provides a return path for your signals, but it can restrict flexibility. Cross-hatched ground planes offer a compromise, maintaining adequate ground reference while preserving flexibility. For precision smartphone module applications, designers often use ground mesh patterns that optimize both electrical performance and mechanical flexibility. The key is ensuring that your high-speed signals always have a nearby return path—even when the circuit bends.
Material Choices That Make or Break Your Design
The materials you select for your long flex PCB directly impact both signal integrity and mechanical reliability. While material decisions might seem straightforward, the wrong choices can doom your project regardless of how well you optimize your circuit design.
Adhesiveless materials have revolutionized long flex PCB design by eliminating the dielectric properties variations that adhesive layers introduce. Traditional adhesive-based constructions use acrylic or epoxy adhesives to bond copper to polyimide, but these adhesives have different dielectric constants and loss tangents than the base polyimide material. This creates layer-to-layer impedance variations that become problematic in long circuits carrying high-speed signals.
Modern adhesiveless constructions use a process where copper is directly deposited onto polyimide without intermediate adhesive layers. This approach provides more consistent dielectric properties throughout the material stack-up, which translates to more predictable impedance control. For telecommunications applications requiring precise 50-ohm transmission lines over meter-long distances, adhesiveless materials often make the difference between a functioning product and an expensive redesign.
The thinner overall construction that adhesiveless materials enable also improves flexibility and reduces the minimum bend radius—both critical factors when your flexible circuit must navigate complex three-dimensional paths in a tight enclosure. Beauty tech gadgets, for example, often require ultra-thin flexible circuits that can fold into compact spaces while maintaining signal integrity for sensors and display interfaces.
Polyimide substrate selection involves balancing cost, performance, and availability. Standard polyimide films work well for many applications, but high-frequency designs benefit from low-loss polyimide formulations specifically engineered for signal integrity. When designing flexible circuits for AR wearables or AI glasses, where high-speed video signals must traverse relatively long distances in a space-constrained form factor, investing in premium polyimide materials delivers measurable improvements in signal quality.
Stiffener placement and design affects both mechanical reliability and signal integrity in long flex PCBs. Stiffeners serve multiple purposes—they provide structural support for components, create flat surfaces for connector attachment, and manage mechanical stress at bend points. But stiffeners also affect the electrical properties of your circuit in ways that designers sometimes overlook.
When you attach a stiffener to your flexible circuit, you’re changing the dielectric environment around your traces in that region. This creates an impedance discontinuity that can cause signal reflections. Experienced designers account for this by adjusting trace geometries in stiffened areas to maintain consistent impedance throughout the circuit. In industrial control applications where long flex PCBs connect distributed sensors, proper stiffener design prevents the stress concentrations that lead to premature circuit failure.
For automotive applications requiring IATF 16949 certification, material selection must also consider long-term reliability under harsh conditions. The flex PCBs in an electric vehicle might experience temperature extremes from -40°C to 125°C, vibration, humidity, and chemical exposure from automotive fluids. Material choices that work fine in a consumer electronics product with a 2-year expected life might fail catastrophically in an automotive environment with a 15-year reliability requirement.
Advanced Manufacturing Strategies for Extended-Length Circuits
Manufacturing long flex PCBs presents unique challenges that require specialized equipment and processes. The manufacturing strategy you choose directly impacts the signal integrity and reliability of your finished circuits.
Precision etching control becomes increasingly critical as circuit length increases. In a standard-sized flex PCB, minor variations in trace width across the panel cause negligible impedance changes. In a 3-meter long circuit, those same variations compound to create significant impedance inconsistencies that degrade signal quality. Advanced etching processes with closed-loop feedback control maintain trace dimensions within tight tolerances across the entire circuit length.
The challenge intensifies in HDI designs with 2/2mil line width and spacing, where even minor etching variations affect impedance. Manufacturing facilities must maintain precise control over etchant chemistry, temperature, and agitation to achieve consistent results across long circuit lengths. This is where working with an experienced manufacturer makes a tangible difference—companies like Flex Plus have refined their etching processes over 20+ years to deliver the consistency that long flex PCB designs demand.
Imaging and registration accuracy directly impacts layer-to-layer alignment in multilayer long flex PCBs. When your flexible circuit includes eight layers and stretches over 2 meters, maintaining precise registration between layers becomes exponentially more difficult than in standard-sized boards. Temperature variations during the manufacturing process cause materials to expand and contract, throwing off registration if not properly compensated.
Advanced manufacturers use laser drilling for via formation rather than mechanical drilling, which improves positional accuracy and enables smaller via sizes. For medical device applications requiring biomedical-compatible multilayer flex PCBs with blind and buried vias, this precision determines whether the product meets its performance specifications.
Thermal management during manufacturing influences both immediate yield and long-term reliability. The lamination process used to create multilayer structures applies heat and pressure to bond layers together. In long flex PCBs, managing temperature uniformly across the entire circuit length prevents warpage and delamination issues that compromise signal integrity. Specialized lamination presses with extended platens and precise temperature control zones ensure consistent bonding across meter-long circuits.
Quality control and testing must adapt to the unique requirements of long flex PCB designs. Standard electrical testing that works for conventional boards becomes impractical for 3-meter circuits—you can’t simply place probes at every test point when those points are spread across such an extended length. Advanced manufacturers implement flying probe testing systems with extended travel ranges, or design custom test fixtures that accommodate long circuit formats.
Impedance testing deserves particular attention in long flex PCB manufacturing. Time-domain reflectometry (TDR) allows manufacturers to measure impedance continuously along the entire trace length, identifying problematic sections that might not appear in simple DC resistance testing. For high-speed digital or RF applications, this type of testing validates that your carefully designed controlled impedance actually translates to the manufactured product.
For aerospace and defense applications where every circuit must meet stringent IPC-6013 standards, traceability becomes paramount. Manufacturing systems must track each long flex PCB through every process step, recording test results and maintaining documentation that proves compliance with specification requirements. This level of quality control separates professional manufacturers from companies that treat flex PCBs as an afterthought in their product mix.
Building Better Electronics Through Superior Flexible Circuit Solutions
The future of electronics increasingly depends on long flex PCB designs that can maintain signal integrity across extended distances while conforming to complex mechanical assemblies. From electric vehicles to medical devices, from telecommunications infrastructure to emerging technologies in low-altitude airspace, the applications demanding these sophisticated circuits continue to expand.
Success in long flex PCB design requires more than just following a checklist of best practices. It demands a deep understanding of how signal integrity, material properties, and manufacturing capabilities intersect to create circuits that perform reliably in demanding applications. The difference between a functioning product and an expensive failure often comes down to seemingly minor details—how you handle impedance transitions, where you place ground returns, or which material you select for your dielectric.
As technology advances toward higher speeds, tighter integration, and more challenging operating environments, the importance of proper long flex PCB design only grows. Products that might have functioned adequately with mediocre circuit design a decade ago now require the kind of engineering rigor traditionally reserved for aerospace applications. This evolution reflects broader trends in electronics—more functionality, higher performance expectations, and zero tolerance for field failures.
For over two decades, Flex Plus (Xiamen) Co., Ltd has been at the forefront of flexible PCB manufacturing, developing the expertise and capabilities needed to tackle the most challenging long flex circuit designs. With certifications including ISO 9001, ISO 13485, IATF 16949, and ISO 14001, Flex Plus provides the quality assurance that critical applications demand. The company’s sheet-by-sheet processing approach and 8,000+ square meter manufacturing facility enable everything from rapid prototyping to high-volume production of flexible circuits up to 3 meters in length.
Whether you’re developing next-generation EV technology, creating medical devices that save lives, or designing the telecommunications infrastructure that connects our world, your long flex PCB design deserves a manufacturing partner who understands that signal integrity isn’t just a specification—it’s the foundation upon which reliable products are built. Through complete manufacturing control, advanced engineering support, and breakthrough technologies like flexible COB integration, Flex Plus empowers innovation across industries by delivering flexible PCB solutions that perform when performance matters most.
The path from concept to production-ready long flex PCB design may be complex, but with the right approach to signal integrity, material selection, and manufacturing strategy, you can create circuits that exceed expectations for both electrical performance and mechanical reliability. Your product’s success depends on it.
